vertisa steam boilers

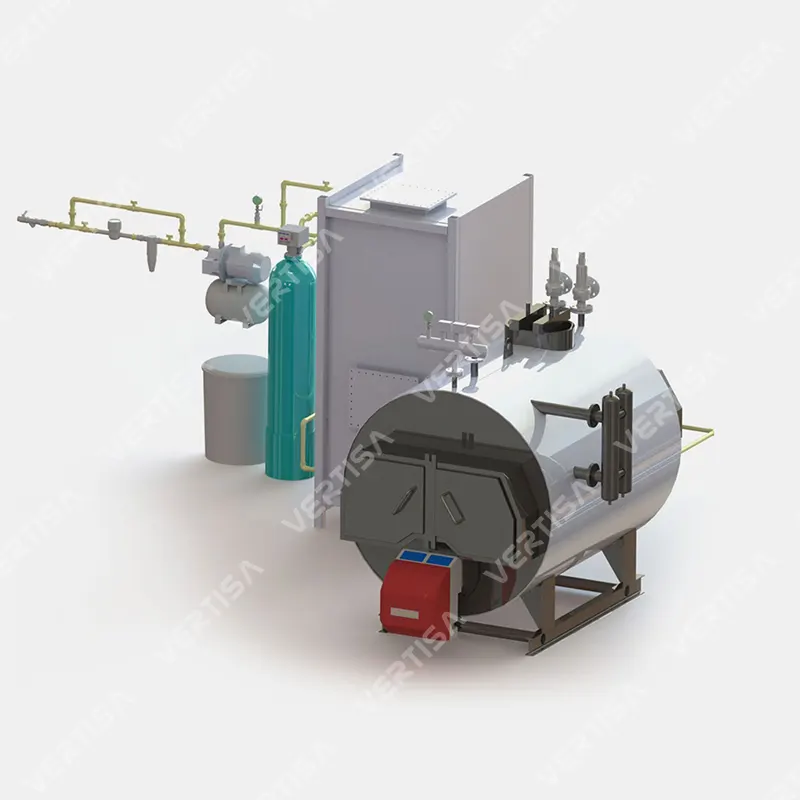

Vertisa Steam Boilers Product

Our cutting-edge, exceptionally efficient Scotch-type boilers feature a fully cylindrical design with a three-pass configuration, boasting ample water volumes to accommodate rapid steam injections.

Vertisa Industrial steam boilers are widely favored in the steam production sector for their simplicity in maintenance and remarkable efficiency.

All design and manufacturing processes adhere strictly to CE and DIN EN standards and norms.

Steam Boiler Capacity

  • Insulation: 80 kilograms per meter of 10-centimeter glass wool, coated with galvanized or stainless steel sheet
  • Steam Production: Ranges from 100 kilograms per hour to 7,000 kilograms per hour
  • Description: Features a cylindrical or half-cylindrical design, classified as a Three-Pass Steam Boiler
  • Capacity: Capable of handling steam production from 100 kilograms per hour to 7,000 kilograms per hour
  • Control Unit: Equipped with a PIC system featuring a 7-inch touchscreen monitor and Vertisa Teknosec 3.1 control software
  • Operating Pressure: Maintained within the range of 4.0 to 6.0 bar
  • Test Pressure: Tested under pressures ranging from 6 to 10 bar
  • Material: Constructed using P235GH and 6337-6341 materials
  • Fuel Type: Compatible with Diesel, Natural Gas, LPG, LNG, CNG, and Coal
  • Smoke Pipes: Comprised of St 35.8 material, compliant with DIN 2448 standards.

Build And Components

  • Full-size corrugated furnace of Morrison design.
  • Body designed to withstand high pressure.
  • Gas transit optimized for optimal performance.
  • Generous volume for high-quality steam production.
  • Fire chamber cooled by water.
  • Seamless steel pipes for the boiler meeting DIN 17175 standards.
  • Boiler shells, mirrors, furnace, and fire sheets compliant with DIN EN 10028 norms.
